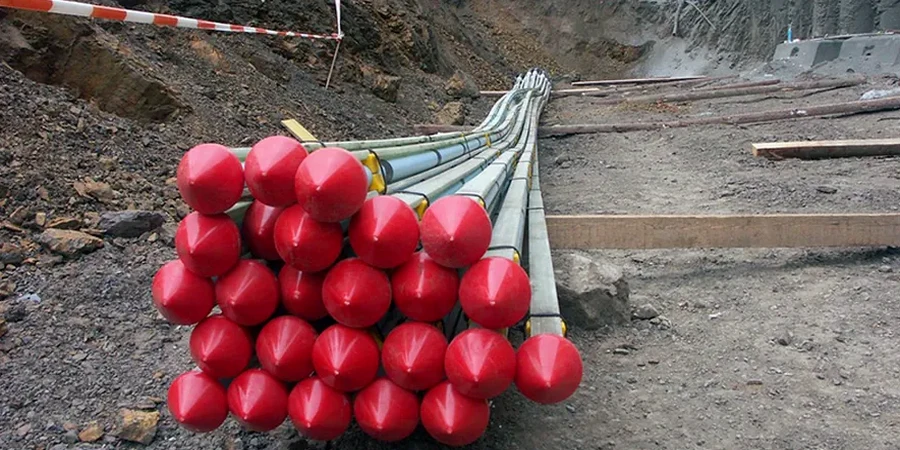

Every time a deep excavation opens up in Abbotsford, the question of lateral support becomes impossible to ignore. We have seen how a poorly anchored shoring wall deflects under the weight of saturated Sumas clay, and the cost of fixing that mid-project is something no contractor wants to absorb. The design of active and passive anchors is not about picking a generic catalog solution — it is about understanding how the anchor bond zone interacts with the specific stratigraphy of the Fraser Valley, where stiff silts, loose alluvial sands, and occasional cobble lenses coexist within the same cut. A proper anchor design transfers tensile loads into competent soil or rock far behind the failure wedge, keeping the excavation open and the adjacent roads and utilities intact. In a city where the water table often sits just a few meters below grade from October to April, grouting technique and corrosion protection become as critical as the steel grade itself. For projects where the excavation depth exceeds 4 meters and the site borders sensitive structures, we often recommend complementing the anchoring scheme with an excavation monitoring program that tracks load evolution in real time and confirms that the lock-off load holds steady through the construction phase.
An anchor that creeps in Sumas clay will slowly transfer load back into the wall — and by the time you see the crack, the damage is already structural.
Process and scope
Abbotsford sits on a complex glacial and post-glacial deposit sequence. The upper 5 to 15 meters commonly feature the Sumas Drift — a mix of till, glaciomarine stony clay, and outwash sand — while deeper strata transition into competent glacial till or bedrock of the Chuckanut Formation. This stratigraphy matters because the bond length of an anchor must be placed in a stratum that can develop the required skin friction without excessive creep. In the stiff clays found near Clearbrook, passive anchors that rely on soil deformation to mobilize resistance can experience delayed movement if the design underestimates the creep coefficient. Active anchors, tensioned immediately after grouting, give us direct control over the load applied to the wall, which is particularly valuable when working next to existing basements along South Fraser Way. The anchor head detail must accommodate long-term movement without losing pre-stress, and the trumpet and wedge assembly needs to be specified for the strand count and anticipated elongation. We size the unbonded length to extend past the critical failure surface defined by a site-specific slope stability analysis, and the grout column is designed under the assumption that the ground may be fully saturated during the winter months, reducing the effective stress at the grout-soil interface. Corrosion protection follows the double-corrosion barrier approach required for permanent anchors, with sheathing extending the full bond length and a factory-applied grease layer around each strand.
Local ground factors
The mistake we run into most often in Abbotsford is treating the bond length as a fixed number instead of verifying it against the actual soil encountered in each drill hole. A contractor will install a row of anchors assuming a 6-meter bond in dense till, but if the drill rig hits a pocket of loose outwash sand at that depth, the grout takes more cement than expected and the anchor fails the creep test. That failure triggers a redesign cycle that can stall the excavation for two weeks — and in the Fraser Valley rain season, an open cut with standing water degrades the passive resistance of the soil at the toe, compounding the problem. Another risk is under-designing the waler beam connection. In active anchor systems, the locked-in load plus the incremental seismic demand under NBCC 2020 can exceed the bearing capacity of a light channel section, leading to localized crushing of the concrete wall face. We always specify the bearing plate dimensions and stiffener arrangement based on the factored lock-off load, not the service load, because the lock-off load is what the wall actually lives with day to day. For temporary anchors in silty clay, the unbonded length must be long enough to keep the bond zone well behind the active wedge, otherwise the anchor just pulls the wedge along with it.
Common questions
What's the difference between an active and a passive anchor?
An active anchor is tensioned against the wall immediately after the grout reaches sufficient strength, applying a pre-determined lock-off load that controls wall deflection from day one. A passive anchor is not pre-stressed; it only mobilizes resistance when the wall moves enough to stretch the tendon. In Abbotsford's stiff clays, passive anchors can require several millimeters of wall movement before reaching design load, which may not be acceptable next to existing structures.
How much does an active/passive anchor design cost in Abbotsford?
The design package for a typical anchored shoring wall in Abbotsford ranges from CA$1,460 to CA$5,590, depending on the number of anchor rows, the complexity of the stratigraphy, and whether the project requires permanent or temporary anchors. This covers bond length calculations, corrosion protection specification, load testing procedures, and construction-phase support.
What load testing is required for permanent anchors?
Permanent anchors in Canada require performance tests on a minimum of two anchors per distinct soil profile, proof tests on every production anchor, and extended creep tests when the bond zone is in cohesive soil. Performance tests load the anchor to 133% of the design load and hold it while measuring creep over a 60-minute period. Acceptance is based on the creep rate criteria defined in PTI DC35.1.
